DPC-4-1000 chassis car for Switchgear use from JUCRO Electric

FOB Price

US $70.501 - 300 piece

US $70.00301 - 3000 piece

group name: Accessories for switchgear

Min Order: 1 piece

brand name: JUCRO

model: DPC-4-1000

Nearest port for product export: Ningbo, Shanghai, Others

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Westem Union, Cash, Escrow

update time: Wed, 18 May 2022 14:27:25 GMT

contact supplier

Paramtents

Rated voltage DC220 or DC110
Motor power 200W

Packging & Delivery

Min Order1 piece

Briefing

chassis car
Model: DPC-4-1000
Brand: JUCRO

Detailed

Product Description

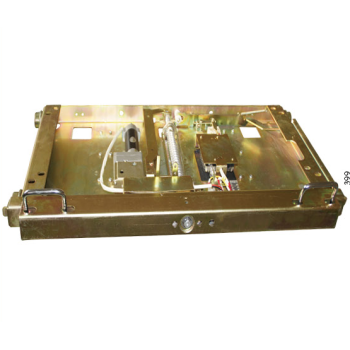

DPC-4-1000 Electric chassis car for Switchgear use from JUCRO Electric

Special function chassis car description:

a, DPC- □ - mouth / G chassis car: This type of chassis car only increases the door closing function, that is, when the door is open, you can not insert the handle to shake the chassis car, only the upper □ can be shaken, the interlock function does not need Change the door.
b, DPC- □ - □ / S chassis: This type of chassis car adds lock function on the basis of item a, that is, when the handcart leaves the test position, the door is locked, can not be opened, only the test is returned Position, the door can be opened, the interlock function needs to change the door.

DPC port chassis car ordering instructions

1. Indicate the chassis model, lock plate code, auxiliary switch specifications, grounding method, etc.

2. The auxiliary switch specification refers to the specification of the auxiliary switch itself (that is, the specification before the chassis is not installed). Generally 5 groups, 6 groups of contacts, can also provide 10 sets of contacts (consisting of 2 auxiliary switches in series)

3.24kV chassis car only travel from 200mm to 300mm, the rest unchanged, plus /X300 after the original model.

4. If there are special requirements, please negotiate with our factory.

Detailed Images

Chassis car grounding contact installation dimension drawing description

Product number	A
DPC-□-800	296
DPC-□-1000	496

Packing & Delivery

Strong package, Safety first.

Inside with foam to support the product, put it in carton or wooden box, fixed it on pallet.

As long as possible to keep the products safe until it arriving customer's warehouse.

Clearly marking label outside of package, customers will be easy to identify their goods.
