Circuit Breaker HVD8 40.5KV 2000A SF6 from JUCRO Electric

group name: SF6 Circuit Breaker

Min Order: 1 piece

brand name: JUCRO

model: HVD8-40.5/2000

Nearest port for product export: Ningbo, Shanghai, Others

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Westem Union, Cash, Escrow

update time: Wed, 18 May 2022 14:28:03 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

SF6 Circuit Breaker
Rated voltage: 40.5KV
Rated current: 2000A
Model: HVD8-40.5/2000
Brand: JUCRO

Detailed

HVD8 40.5KV 2000A SF6 Circuit Breaker from JUCRO Electric

Detailed Image

1. Product description

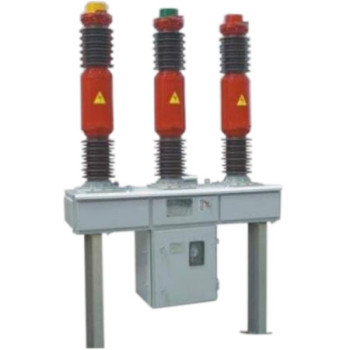

HVD8 /LW8-40.5 type outdoor high-pressure sulfur hexafluoride circuit breaker is three-pole ac 50 hz, outdoor high voltage switch equipment, applicable to 40.5 kV power transmission and distribution system control and protection, can also be used to contact circuit breaker and movable capacitor group.

Standard: IEC 62271-100.

Certification: ISO9001-2015

Operation: Energy-storage Type

Installation: Fixed

Arc-extinguishing Medium: SF6

Speed: Normal Type Circuit Breaker

HS Code: 85353000

a. The circuit breaker is outdoor small ceramic column structure, which equipped with CT14 spring operation mechanism; mechanism and main part connected with simple installation. It has features of convenient adjustment, reliable operation, suitable for frequent operation; mechanism service life more than 3000 times;

b. Adopt air-compression arc-extinguishing structure, with strong breaking capacity, 40kA total breaking times up to 12, which is the highest in China:

c. Reliable sealing performance. Adopt import seal; dynamic seal adopts "V" type sealing ring with spring pressure compensation structure; the transformer secondary wiring board matched by cooperative enterprises, to ensure the annual leakage rate less than 1%,

d. Inner current transformer adopts micro crystallizing alloy high magnetic materials, with accurate class up to grade 0. 2 or grade 0.2S. According to users' needs, it can be matched with 12 transformers, to meet the load line of 50 km without restrike.

2. Main technical specification:

Item		Unit	Date
Rated voltage		KV	40.5
Rated insulation level	Lightning impulse withstand voltage(peak value)	KV	185
	1min power frequency withstand voltage	KV	95
Rated current		A	2000
Mechanical life time		time	3000
Rated air pressure of SF6 (psig at 20℃)		Mpa	0.05
Alarm pressure/Min function pressure (psig at 20℃)		Mpa	0.47/0.45
Rated short-circuit breaking current		KA	40
Rated short circuit making current (peak value)			100
Rated short time withstand current (thermal stability current)			40
Rated peak withstand current (dynamic stability current)		KA	100
Rated out of step breaking current		KA	10
Rated breaking times under short circuit breaking current		time	12
Rated short circuit duration		S	4
Closing time (under rated operation voltage)		S	≤0.1
Opening time (under rated operation voltage)		S	≤0.06
Rated operating sequence			O-0.3s-CO-180s-CO
Rated making single capacitor bank current		A	400
Annual leakage rate		%	≤1
SF6 water content(V/V)			≤150*10^-6
Rated operation voltage of matched CT14 spring operation mechanism
Closing and opening coil voltage		V	AC: 220 380 DC: 18 110 220
Energy storage motor voltage		V	AC: 220 380 DC: 110 220
Weight of SF6 gas		kg	8
Weight of circuit breaker (including operation mechanism)		kg	1400

Item	Unit	Data	Technical parameter
Moving contact travel	mm	95±2	Measure moving contact travel
Opening distance between contacts	mm	60±1.5	Measure distance between moving and fixed contact
Pole-to-pole closing synchronous	ms	≤3	Measure pole distance difference between moving and fixed contact
Pole-to-pole opening synchronous	ms	≤2	Measure pole distance difference between moving and fixed contact
Main circuit resistance	mΩ	≤120	Measure DC voltage reduction
Closing speed	m/s	3.2±0.2	Rated air pressure, measuring method
Opening speed	m/s	3.4±0.2	Rated air pressure, measuring method
Closing buffer distance	mm	9.5-11	Under closing state
Spacer of closing buffer	mm	1-2	Under closing state
Partial 48.6kV	Pc	20	Measure by partial measuring device under rated air pressure; apply voltage 486kv on the two out-line ends of the circuit breaker for 1 min, then reduce the voltage to 28V to measure
Disharge 28kV	Pc	10

Strong package, Safety first.

Inside with foam to support the product, put it in carton or wooden box, fixed it on pallet.

As long as possible to keep the products safe until it arriving customer's warehouse.

Clearly marking label outside of package, customers will be easy to identify their goods.

20000 M2 of JUCRO Electric company land

1500 M2 of office building

5000 M2 of workshop building

Vacuum Interrupter Workshop

Accept customized order.
Design the Vacuum Interrupter for you.

VCB Production Line

VCB Vacuum Circuit Breaker production Line.

VCB Production Line

VCB Vacuum Circuit Breaker production line, Engineers routine inspection.

Carefully inspection of each product, Quality guaranteed

completely data records of entire process , all the product data can be traced.
