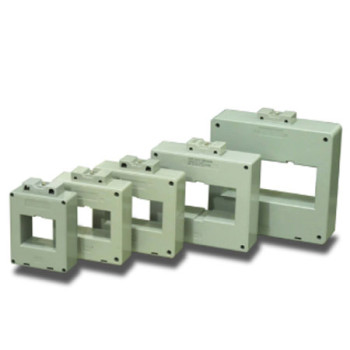

Current Transformer BH-0.66-100-1500-5.SDH.LN from JUCRO Electric

group name: Current Transformer

Min Order: 1 piece

brand name: JUCRO

model: BH-0.66-100-1500-5

Nearest port for product export: Ningbo, Shanghai, Others

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Westem Union, Cash, Escrow

update time: Wed, 18 May 2022 14:28:37 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

Current Transformer
Rated voltage: 0.66kV
Rated loading: 2.5VA/5VA/10VA/15VA/20VA/40VA
Type: BH-0.66-80-1000-5
Brand: JUCRO

Detailed

Current Transformer BH-0.66-100-1500-5.SDH.LN from JUCRO Electric

Description

The current transformer is used for measuring electric energy and current, relay protection in the electric systems up to rated frequency 50Hz or 60Hz and rated voltage 0.66kV.

Type description

Note:

Type I (square circuit hole) capable of passing through either the cable or the purpose of monitoring.

Type II(horizontal square hole) capable of passing through 1-3 bus bar(s) is generally used for the purpose of monitoring.

Type III(vertical square hole) capable of passing through 1-3 bus bar(s) has the same characteristics of Type I and Type II, and is also intended to measure the electric energy of power supply system(Class0.2).It can still be used at larger secondary impedance and act as the zero-sequence current transformer.

Construction

The iron core is loop type. The secondary winding go uniformity around the core. There has hole for the busbar going through on the nip.

Technical data

Specification	Rated primary/ Secondary current	Cut the size(mm²)		Root NO		Rated loading	Accuracy grade	Tallest work Voltage (V)	Primary ampere-turn
BH-100	600/5	80×10	100×10	1	1-2	10	0.5	660	1
	750/5	80×10	100×10	1	1-2	10	0.5	660	1
	800/5	80×10	100×10	1	1-2	10	0.5	660	1
	1000/5	80×10	100×10	1	1-2	15	0.2	660	1
	1200/5	80×10	100×10	1	1-2	20	0.2	660	1
	1500/5	80×10	100×10	1	1-2	20	0.2	660	1
	2000/5	80×10	100×10	1	1-2	40	0.2	660	1
	2500/5	80×10	100×10	1	1-2	40	0.2	660	1
	3000/5	80×10	100×10	1	1-2	40	0.2	660	1

Packing & Delivery

Strong package, Safety first.

Inside with foam to support the product, put it in carton or wooden box, fixed it on pallet.

As long as possible to keep the products safe until it arriving customer's warehouse.

Clearly marking label outside of package, customers will be easy to identify their goods.
