Current Transformer
Rated voltage: 10kV
Rated loading: 10VA/15VA/20VA/30VA
Type: LZZBJ9-10（A、B、C）
Brand: JUCRO

Detailed

Current transformer LZZBJ9-10（A、B、C） from JUCRO Electric

Description

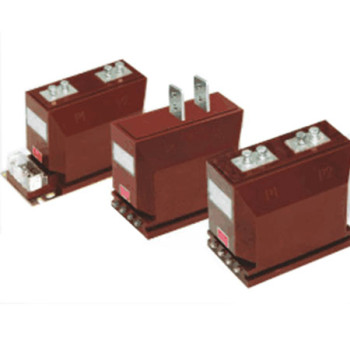

Current transformer type LZZBJ9-10 is made indoor cast-resin insulated, totally-enclosed structure. It is designed for current, power measurement and relay protection in AC power system with rated frequency 50Hz, rated voltage 10kV and below.

Type description

Service condition

1. Altitude: Not over 1000m;

2. Ambient temperature: -5℃ to +40℃;

3. Relative humidity: less than 90%, at 20℃;

4. No gas, steam, chemical deposition, pollution, explosive gas or etching gas which way badly influence the insulation of the transformer;

5. No chattering of bumping.

Construction

The product has a leg type, totally-enclosed structure and its ring core, primary winding and secondary winding are casted resin insulated. Reinforce insulation makes it workable under humidity condensation pollution Ⅱ. Three wiring ways are for your choice(A.B.C).

The outlet marks of the products are:primary P1,P2,secondary group on 1S1、1S2,group two 2S1、2S2.

As the primary current flow form

Technical data

type	Rated primary current(A)	Accuracy classes combination	Rated output(VA)	Short-time thermal current(kA/S)	Rate dynamic current(kA)
LZZBJ9-10A、B、C	10	0.2/10P10	10/15	2.0	5.0
		0.5/10P10	10/15	2.0	5.0
		0.2/10P10	10/15	1.0	2.5
		0.5/10P10	10/15	1.0	2.5
	15	0.2/10P10	10/15	4.5	11.25
		0.5/10P10	10/15	4.5	11.25
		0.2/10P10	10/15	1.5	3.75
		0.5/10P10	10/15	1.5	3.75
	20	0.2/10P10	10/15,10/20	6	15
		0.5/10P10	10/15,10/20	6	15
		0.2/10P10	10/15,10/20	3	7.5
		0.5/10P10	15/15,20/20	3	7.5
	30	0.2/10P10	10/15,10/20	12	30
		0.5/10P10	10/15,10/20	12	30
		0.2/10P10	10/15,10/20	4.5	11.25
		0.5/10P10	15/15,20/20	4.5	11.25
		0.2/10P10	10/15	3.6	9
		0.5/10P10	10/15	3.6	9
	40	0.2/10P10	10/15,10/20	16	40
		0.5/10P10	10/15,10/20	16	40
		0.2/10P10	10/15,10/20	6	15
		0.5/10P10	15/15,20/20	6	15
		0.2/10P10	10/15	4.8	12
		0.5/10P10	10/15	4.8	12
	50	0.2/10P10	10/15,10/20	21	52.5
		0.5/10P10	10/15,10/20	21	52.5
		0.2/10P10	10/15,10/20	7.5	18.75
		0.5/10P10	15/15,20/20	7.5	18.75
		0.2/10P10	10/15	6	15
		0.5/10P10	10/15	6	15
	60	0.2/10P10	10/15,10/20	21	52.5
		0.5/10P10	10/15,10/20	21	52.5
		0.2/10P10	10/15,10/20	9	22.5
		0.5/10P10	15/15,20/20	9	22.5
		0.2/10P10	10/15	7.2	18
		0.5/10P10	10/15	7.2	18
	75	0.2/10P10	10/15,10/20	31.5	78.75
		0.5/10P10	10/15,10/20	31.5	78.75
		0.2/10P10	10/15,10/20	10	25
		0.5/10P10	15/15,20/20	10	25
		0.2/10P10	10/15	9	22.5
		0.5/10P10	10/15	9	22.5
	100	0.2/10P10	10/15,10/20	45	112.5
		0.5/10P10	10/15,10/20	45	112.5
		0.2/10P10	10/15,10/20	21	52.5
		0.5/10P10	15/15,20/20	21	52.5
		0.2/10P10	10/15	12	30
		0.5/10P10	10/15	12	30
	150	0.2/10P10	10/15,10/20	45	112.5
		0.5/10P10	10/15,10/20	45	112.5
		0.2/10P10	10/15,10/20	31.5	78.75
		0.5/10P10	15/15,20/20	31.5	78.75
		0.2/10P10	10/15	18	45
		0.5/10P10	10/15	18	45
	200,250	0.2/10P10	10/15,10/20	45	112.5
		0.5/10P10	10/15,10/20	45	112.5
		0.2/10P10	10/15,10/20	45	112.5
		0.5/10P10	15/15,20/20	45	112.5
		0.2/10P10	10/15	24	60
		0.5/10P10	10/15	24	60
	300	0.2/10P10	10/15,10/20	63	157.5
		0.5/10P10	10/15,10/20	63	157.5
		0.2/10P10	10/15,10/20	45	112.5
		0.5/10P10	15/15,20/20	45	112.5
0.2/10P10		15/15	36	90
0.5/10P10		15/15	36	90
400	0.2/10P10	10/30,15/20	63	157.5
	0.5/10P10	10/15,10/20	63	157.5
	0.2/10P10	15/15,10/20	63	157.5
	0.5/10P10	20/20	63	157.5
	0.2/10P10	15/15	48	120
	0.5/10P10	15/15	48	120
500	0.2/10P10	10/30,15/20	63	157.5
	0.5/10P10	20/30,15/20	63	157.5
	0.2/10P10	15/15,10/20	63	157.5
	0.5/10P10	20/20	63	157.5
	0.2/10P10	15/15	63	157.5
	0.5/10P10	15/15	63	157.5
600	0.2/10P10	10/30,15/20	80	200
	0.5/10P10	20/30,15/20	80	200
	0.2/10P10	15/15,10/20	80	200
	0.5/10P10	20/20	80	200
	0.2/10P10	15/15	80	200
	0.5/10P10	15/15	80	200
800	0.2/10P10	20/20,15/30	80	200
	0.5/10P10	20/20,30/30	80	200
	0.2/10P10	20/15,15/20	80	200
	0.5/10P10	20/15,30/20	80	200
	0.2/10P10	15/20	80	200
	0.5/10P10	15/20	80	200
1000	0.2/10P10	20/20,15/30	80	200
	0.5/10P10	20/20,30/30	80	200
	0.2/10P10	20/15,15/20	80	200
	0.5/10P10	20/15,30/20	80	200
	0.2/10P10	15/20	80	200
	0.5/10P10	15/20	80	200
1250(1250)	0.2/10P10	20/20,15/30	100	250
	0.5/10P10	20/20,30/30	100	250
	0.2/10P10	20/15,15/20	100	250
	0.5/10P10	20/15,30/20	100	250
	0.2/10P10	15/20	100	250
	0.5/10P10	15/20	100	250

Note: The above technical parameter, rated secondary current is 5A, if needs 1A or other data please contact with the company when orderings.

When ordering, please specify the following:

1. Type and currenty ration;

2. Accuracy class and secondary output;

3. Insulation class and service condition.
