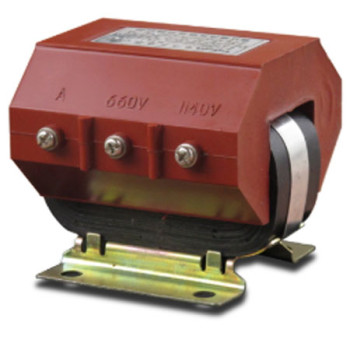

Voltage Transformer JDZ1-1/ JDZ2-1 from JUCRO Electric

group name: Voltage transformer

Min Order: 1 piece

brand name: JUCRO

model: JDZ1-1/ JDZ2-1

Nearest port for product export: Ningbo, Shanghai, Others

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Westem Union, Cash, Escrow

update time: Wed, 18 May 2022 14:29:19 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

Voltage transformer
Rated voltage: 1kV
Rated loading: 5VA
Type: JDZ1-1/ JDZ2-1
Brand: JUCRO

Detailed

Voltage Transformer JDZ1-1/ JDZ2-1 from JUCRO Electric

Description

The current transformer is used for measuring electric energy and voltage, relay protection in the electric systems up to rated frequency 50Hz or 60Hz and rated voltage 1kV.

Type description

Construction

The product is of insulated structure cast with epoxy and piled-shape core wound by primary and secondary windlings. The lead of secondary is out through called a.x. The lead of the primary is out through to high-Tention terminals called A.X.

Technical data

Voltage transformers are in accordance with the Chinese standards GB1207-75
Rated voltage ratio	380,660/100	660,1140/100	750,1500/100
Frequency(Hz)	50	50	50
Rated output(VA) For accuracy class	5	5	5
Insulation level(kV)	0.66/3.6	1.14/3.6	1.5/3.6

When ordering, please specify the following

1. Insulation level

2. ratio primary and secondary voltage

3. Number of cores, output and accuracy class

4. Test specification

Packing & Delivery

Strong package, Safety first.

Inside with foam to support the product, put it in carton or wooden box, fixed it on pallet.

As long as possible to keep the products safe until it arriving customer's warehouse.

Clearly marking label outside of package, customers will be easy to identify their goods.
