Voltage transformer
Rated voltage: 3kV/6KV/10KV
Rated output: 30VA/50VA/80VA
Type: JDZ-3、6、10（W）
Brand: JUCRO

Detailed

Voltage transformer JDZ-3、6、10（W）from JUCRO Electric

Description

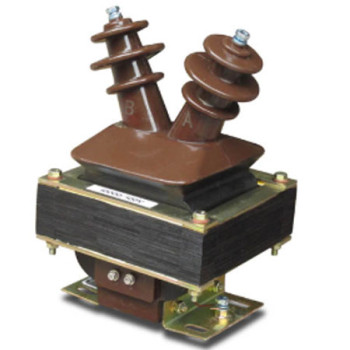

JDZ Voltage transformer type is of single-phase and double winding cast with epoxy resin. It is designed for use of measurement of electronic energy and relay protection in electronic system at current of 50Hz. It has JDZ-3（W）、JDZ-6（W）、JDZ-10（W）three types.

Type description

Service condition

1. Altitude: Not over 1000m;

2. Ambient temperature: -5℃ to +40℃;

3. Relative humidity: less than 85%, at 20℃;

4. This product has passed the direct vibration test with the intensify of 0.4g three sine wares. Equivalent to nine-degree earth quatee on the richter scale.

5. This product can be used his condition of pollution.

Construction

The current transformer is of insulated epoxhy resin cast structure with piled ring core wound with primary and secondary winding is a same core.

The secondary lead is out through the two bolts on the cast base to be a.x. The lead of the primary is out through to high-Tention terminals called A.X.

Technical data

type		JDZ-3(W)	JDZ-6(W)	JDZ-10(W)
Rated voltage ratio(V)		1000/100 2000/100 3000/100	6000/100	10000/100
Frequency(Hz)		50	50	50
Rated output(VA)	For accuracy class 0.5	30	50	80
	For accuracy class 1	50	80	150
	For accuracy class 3	80	200	300
Max.output(VA)		200	400	500
Insulated level(kV)		3.5/23/40	6.9/32/60	11.5/42/75

type	Rated voltage ratio(V)	Frequency(Hz)	Rated output(VA)				Max.output(VA)	Insulated level(kV)
			For accuracy class 0.2	For accuracy class 0.5	For accuracy class 0.2/0.2	For accuracy class 0.5/0.5
JDZ-10（W）	10000/100	50	30	80	25/25	50/50	200	11.5/42/75
