Voltage transformer RZL12、JDZ10-3,6,10A(B) from JUCRO Electric
- group name
- Voltage transformer
- Min Order
- 1 piece
- brand name
- JUCRO
- model
- RZL12、JDZ10-3,6,10A(B)
- Nearest port for product export
- Ningbo, Shanghai, Others
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Westem Union, Cash, Escrow
- update time
- Wed, 18 May 2022 14:29:19 GMT
Packging & Delivery
-
Min Order1 piece
Briefing
Rated voltage: 3kV/6KV/10KV
Rated output: 15VA/30VA/40VA/50VA/60VA
Brand: JUCRO
Detailed
Description

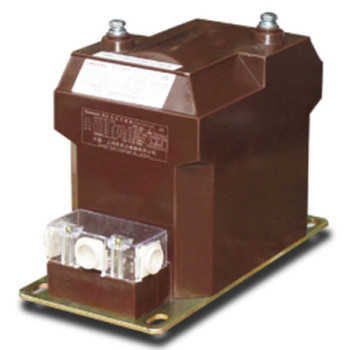

The voltage
transformers of the types RZL(JDZ)10-3,6,10A(B) are single phase, casting resin
insulated and full enclosed products. They are used for metering electric
energy, voltage control and relay protection in the electric non-useful-ground
neutral system up to rated frequency 50Hz or 60Hz and rated voltage 3kV、6kV and 10kV. The transformers can be
executed according to the standards IEC186 and GB1207-1997.
Construction
These voltage transformers are casting resin insulated, fully enclosed type. The iron core and winding are casting together. It is small and light. The secondary outlet line is wrapped by outlet box and has three exits with different direction feed lines.
Technical data
1.
The voltage
transformers are in accordance with GB1207-1997 《Voltage transformer》standards;
2.
Power
factor of load: cosф=0.8(lagging)
3.
Surface
creepage distance: the product accords with the request of Ⅱclass;
4.
The other
technical data see following table.
type |
Rated voltage ratio(V) |
Rated output(VA) |
Frequency(Hz) | Limit output(VA) | Insulated level(kV) |
|||
0.2 |
0.5 | 1 | 6P |
|||||
JDZ10-3A1 |
3000/100 |
15 |
30 | 60 | 50.60 | 150 | 3.6/25/40 |
|
JDZ10-6A1 |
6000/100 |
7.2/32/60 |
||||||
JDZ10-10A1 | 10000/100 | 12/42/75 | ||||||
JDZ10-3B1 | 3000/100 | 25 | 50 | 90 | 300 | 3.6/25/40 | ||
JDZ10-6B1 | 6000/100 | 7.2/32/60 | ||||||
JDZ10-10B1 | 10000/100 | 12/42/75 | ||||||
JDZ10-3AG | 3000/2sin60°/100/2sin60°/100/3 | 40 | 60 | 50 | 150 | 3.6/25/40 | ||
JDZ10-6AG | 6000/2sin60°/100/2sin60°/100/3 | 40 | 60 | 50 | 150 | 7.2/32/60 | ||
JDZ10-10AG | 10000/2sin60°/100/2sin60°/100/3 | 40 | 60 | 50 | 150 | 12/42/75 | ||
JDZ10-3BG | 3000/2sin60°/100/2sin60°/100/3 | 50 | 90 | 50 | 400 | 3.6/25/40 | ||
JDZ10-6BG | 6000/2sin60°/100/2sin60°/100/3 | 50 | 90 | 50 | 400 | 7.2/32/60 | ||
JDZ10-10BG | 10000/2sin60°/100/2sin60°/100/3 | 50 | 90 | 50 | 400 | 12/42/75 | ||
