Disconnecting Switch Isolation Switch GN22-12(C) series indoor HV From Jucro Electric

group name: Isolation switch

Min Order: 1 piece

brand name: JUCRO

model: GN22-12(C)

Nearest port for product export: Ningbo, Shanghai, Others

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Westem Union, Cash, Escrow

update time: Wed, 18 May 2022 14:26:12 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

GN22-12(C) series indoor HV disconnecting switch
Rated voltage 12KV
Rated Current 1600-2000A

Detailed

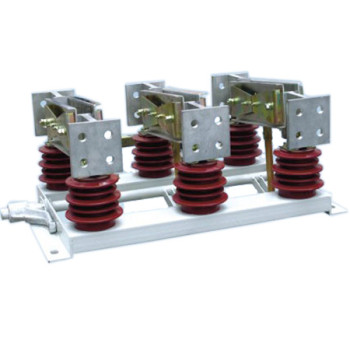

Disconnecting Switch GN22-12(C) series indoor HV From Jucro Electric

GN22-12(C) series indoor high voltage disconnecting switch is suitable for indoor equipment of three- phase , AC50Hz, with rated voltage 12KV. It is mainly used for circuit switching on or off of high voltage equipment in the condition with voltage but without load.

Outline and mounting dimension

The main parameters

Item		Unit	Parameters
Rated voltage		KV	12
Rated Frequency		Hz	50
Rated Current		A	1600-2000	2500-3150
Rated short-time withstand current		KA	40	50
Rated peak withstand current		KA	100	125
Rated short duration		S	4
Rated insulation level	power frequency withstand voltage	KV	Pole to pole、pole to earth 42 fracture 49
	lightning impulse withstand current(peak value)	KV	Pole to pole、pole to earth 75 fracture85

Packing & Delivery

Strong package, Safety first.

Inside with foam to support the product, put it in carton or wooden box, fixed it on pallet.

As long as possible to keep the products safe until it arriving customer's warehouse.

Clearly marking label outside of package, customers will be easy to identify their goods.
