Disconnecting Switch Isolation Switch GN27-35 series indoor HV From Jucro Electric

Disconnecting Switch Isolation Switch GN27-35 series indoor HV From Jucro Electric
Disconnecting Switch Isolation Switch GN27-35 series indoor HV From Jucro ElectricDisconnecting Switch Isolation Switch GN27-35 series indoor HV From Jucro ElectricDisconnecting Switch Isolation Switch GN27-35 series indoor HV From Jucro ElectricDisconnecting Switch Isolation Switch GN27-35 series indoor HV From Jucro ElectricDisconnecting Switch Isolation Switch GN27-35 series indoor HV From Jucro Electric
group name
Isolation switch
Min Order
1 piece
brand name
JUCRO
model
GN27-35
Nearest port for product export
Ningbo, Shanghai, Others
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Westem Union, Cash, Escrow
update time
Wed, 18 May 2022 14:26:12 GMT

Packging & Delivery

  • Min Order1 piece

Briefing

GN38-35 series indoor high-voltage isolaton switch for the lock-voltage 35KV, three phase AC 50Hz power system

Detailed

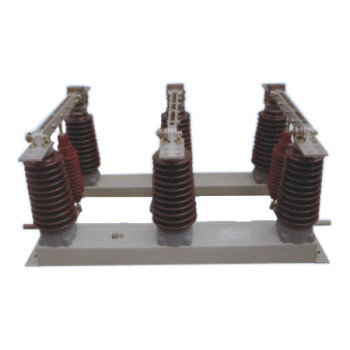

Disconnecting Switch GN27-35 series indoor HV  From Jucro Electric

   GN38-35 series indoor high-voltage isolaton switch for the lock-voltage 35KV, three phase AC 50Hz power  system, as there is voltage under no load conditions and conversion circuits connected purposes.

   The product is equipped with the CS6-2-type Hand Actuator with D, with the hand with the CS6-1-type actuato.

Outline and mounting dimension

The main parameters

Type

Rated voltage(KV)

Maximum voltage KV

Rated current(A)

4s heat-stable current(ms) (kA)

Dynamic stability of current(peak) (kA)

GN27-35C)(D)/630

35

40.5

630

20

50

GN27-35C)(D)/1250

1250

31.5

80

GN27-35C)(D)/2000

2000

40

100

 Packing & Delivery

Strong package, Safety first.

Inside with foam to support the product, put it in carton or wooden box, fixed it on pallet.

As long as possible to keep the products safe until it arriving customer's warehouse.

Clearly marking label outside of package, customers will be easy to identify their goods.
