Isolating switch Disconnecting Switch GN38-12 series indoor HV From Jucro Electric

group name: Isolation switch

Min Order: 1 piece

brand name: JUCRO

model: GN38-12

Nearest port for product export: Ningbo, Shanghai, Others

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Westem Union, Cash, Escrow

update time: Wed, 18 May 2022 14:26:12 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

GN30-12(D) series rotary type indoor HV disconnecting switch
Rated voltage 12kv
Rated Current 630A/1250A

Detailed

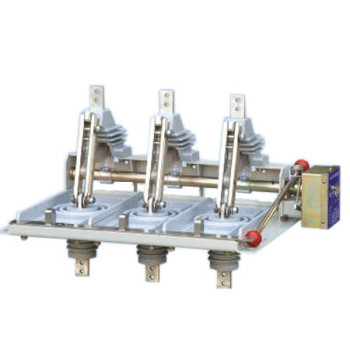

Isolating switch GN38-12 series indoor HV From Jucro Electric

GN38-12KV type series indoor isolating switch, is in order to adapt to the stationaryhigh, Ring net ark to compact, small type of people need and exhibition design and manufacture . It has 3 Labour structure , whole insulation slab, And equipped with coaxial locking and perfect mechanical chain, Compare in size and cabinet. It compact stallations, the switchgear best assorted switch.

Outline and mounting dimension

The main parameters

Item	Unit	Parameters
Rated voltage	KV	12
Rated Frequency	Hz	50
Rated Current	A	630 1250
Rated the thermal stability of current(4s)	KA	25-31.5
Rated current dynamic stability	KA	63-80
1 min industrial frequency tolerance voltage	KV	Ground and same 421; isolation fracture 48
lightning shock resistance current	KV	Ground and same 75; isolation fracture 48

Packing & Delivery

Strong package, Safety first.

Inside with foam to support the product, put it in carton or wooden box, fixed it on pallet.

As long as possible to keep the products safe until it arriving customer's warehouse.

Clearly marking label outside of package, customers will be easy to identify their goods.
