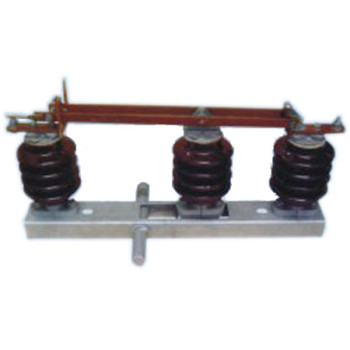

Disconnecting Switch Isolation switch GW1 series outdoor High voltage From Jucro Electric

group name: Isolation switch

Min Order: 1 piece

brand name: JUCRO

model: GW1

Nearest port for product export: Ningbo, Shanghai, Others

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Westem Union, Cash, Escrow

update time: Wed, 18 May 2022 14:26:12 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

GW1 series outdoor HV disconnecting switch From Jucro Electric
Rated voltage 12/15/20kv
Rated Current 200A/400A/630A/1250A

Detailed

Disconnecting Switch GW1 series outdoor HV From Jucro Electric

Outline and mounting dimension

The main parameters

Item		Unit	Parameters
Rated voltage		KV	10/15/20
Maximum work voltage		KV	12/17.5/23
Rated insulation level	power frequency withstand volt	KV	Ground, 40/40/50 fracture, 47/47/60
Rated insulation level	impulse frequency	KV	Ground, 105/105/125 fracture, 120/120/145
Rated Frequency		Hz	50
Rated Current		A	200/400/630/1250
Thermal stability current 4 seconds（effective）		KA	6.3/12.5/20/31.5
Moved current stability (maximum)		KA	100
Accessories frame			CS8-5 manual mechanism or CJ electric operating mechanism

Packing & Delivery

Strong package, Safety first.

Inside with foam to support the product, put it in carton or wooden box, fixed it on pallet.

As long as possible to keep the products safe until it arriving customer's warehouse.

Clearly marking label outside of package, customers will be easy to identify their goods.
