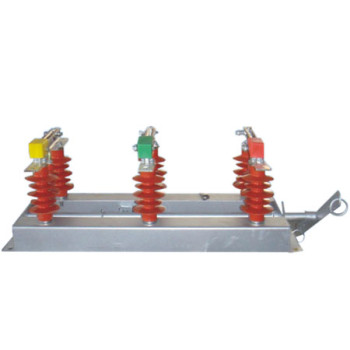

Disconnecting Switch GW7-252 series outdoor High voltage From Jucro Electric

Disconnecting Switch GW7-252 series outdoor High voltage From Jucro Electric
Disconnecting Switch GW7-252 series outdoor High voltage From Jucro ElectricDisconnecting Switch GW7-252 series outdoor High voltage From Jucro ElectricDisconnecting Switch GW7-252 series outdoor High voltage From Jucro ElectricDisconnecting Switch GW7-252 series outdoor High voltage From Jucro ElectricDisconnecting Switch GW7-252 series outdoor High voltage From Jucro Electric
group name
Isolation switch
Min Order
1 piece
brand name
JUCRO
model
GW7-252
Nearest port for product export
Ningbo, Shanghai, Others
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Westem Union, Cash, Escrow
update time
Wed, 18 May 2022 14:26:12 GMT

Packging & Delivery

  • Min Order1 piece

Briefing

Disconnecting Switch GW7-252 series outdoor HV From Jucro Electric
Rated voltage 40.5/72.5/252KV
Rated Current 630A/1250A

Detailed

Disconnecting Switch GW7-252  series outdoor HV  From Jucro Electric
   GW7-252 series outdoor HV disconnecting isolation switch for the three-pillar structure of the level of open, from the base, pillar insulation, conductive system, earthing switch(except the non-grounded) and the transmission system composed of chief surgeon with CJ6 electric sector.
   Base and steel plates welded together by the channel. In the channel is equipped with two bearing and a bearing seat, stay with adjustable suspension at both ends of supports for the structure, can continuously adjust the height of the pillars insulator to ensure that finger-touch access to the best position. Bearing installed in the channel middle axis moves the operating rod can be driven to achieve sub-moving touch closing action. Bearing the seal structure to prevent dust, moisture, harmful gases into the card bearing caused by internal phenomenon; bearing thrust ball bearing and the inside is equipped with ball bearing to the heart, the isolating switch and the horizontal component of gravity by two kinds of special bearing and responsibilities so that isolating switch operation after long-running torque will not increase. Stainless steel shaft pin, and self-lubricating bushings; molybdenum disulfide lubricant for high performance lithium-based grease.
   Cavity equipped with a transmission link in the channel and the interlocking panels. Channel under the welding plate is installed so that the basis of fixed and on-site. Base there is no grounding, single-ground, double grounding of three. Single grounding and grounding base pairs at one end or both ends of the grounding switch bearings, bearing equipped with a grounding switch.
   In the upper end of pillar insulator, composed of the direct contact guillotine and static composition. Knife from the two copper conductive composition, its end has a cylindrical contact of all welded, with the help of copper and aluminum cover clip blocks facilitate the integration between the two tubes. Static contact to mean a multi-point contact forms, each piece has a separate right touch of spring, there is enough to guarantee selection into the pillars at both ends of the role of insulators in the bus pull still guarantee a reliable contact. Static contact under the action of the reset spring deflection angle to facilitate the points, closing light motor coordination.

Outline and mounting dimension

The main parameters

Item

Unit

Parameters

The product model

GW7-72.5

GW7-145

GW7-252

 Rated voltage

KV

72.5

145

252

Rated insulation level

1min power frequency withstand voltage(effective value)

On the groud

KV

160

160

230

Fracture

200

200

230+70

Rated lightning impluse
withstand current(peak)

 On the groud

350

650

1050

Fracture

410

650(+120)

1050+(+200)

Grouding switch of the shortest distance in the process of closing

84

164

291

Rated Frequency

Hz

50/60

Rated Current

A

1250、2000、2500
3150、4000

1250/2000

2000/2500、3150
4000、5000

Rated short-time withstand current

KA

40/50

31.5/40

50/63

 Rated peak withstand current

KA

100/125

80/100

125/60

 Rated short circuit duration

S

4

3

Rated mechanical terminal load

Horizontal and vertical

N

750/1000

1250

1000

Horizontal

500/750

750

750

 vertical force

750

1000

1250

Isolating switch, bus transfer current switching capability

100V、1600A
100 times

100V、1600A
100 times

100V、1600A
100times

Grounding switch induction
current Switching capability

Electromagnetic induction
current(current/voltage)

A/KV

100/4(80/2)

100/6(80/20)

160/15(3/12)

Electrostatic induction current(current/voltage)

A/KV

2/6

5/6(2/6)

10/15(3/2)

The opening and closing times

times

10

Isolating switch low current switching capability

The capacitive current

A

-

1

1

The inductor current

A

0.5

0.5

 Creepage distance

mm

≥1813/2248

≥3625/4495

≥6300/7812

RIV Five wire electric interference level

μV

≤500

 Mechanical life

Times

5000

Applicable altitude(less than)

≤2000

Motor actuator

 Model


CJ

Motor voltage

V

AC380、AC220、DC220、DC110

 Voltage control loop

V

AC380、AC220、DC220、DC110

Points,closing times

S

7±1

16±1

 Output angle

180°

180°

Human actuator

Model

CS17

Electromagnetic lock voltage

V

AC220、DC220、DC110
