Load Break Switch FN7-12 series indoor HV from JUCRO Electric

group name: Accessories for switchgear

Min Order: 1 piece

brand name: JUCRO

model: FN7-12

Nearest port for product export: Ningbo, Shanghai, Others

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Westem Union, Cash, Escrow

update time: Wed, 18 May 2022 14:27:25 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

Fn5-12 series indoor AC high voltage load switch-fuse combination is one new electrical apparatus.

Detailed

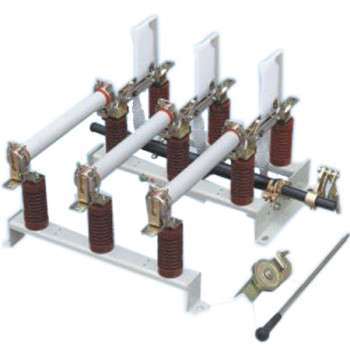

FN7-12 series indoor HV load switch from JUCRO Electric

FN7-12 series indoor high voltage load switch(or switches) is a new type of gas production type indoor HV load switch, applicable to AC 50 Hz, three phase AC power system with rated voltage of 12KV, the breaking load current and close short circuit current use.

FN7-12 series high voltage load switch and fuse combination is based on FN17-12 series high voltage load switch, increase the side operating mechanism, make the installation more convenient, can satisfy the user ' s need not require.

Main technical parameter

Rated voltage(KV)	One-minute power frequency witthstand voltage(KV)	Rated current(A)	heat-stable current of 4 seconds (A)	Dynamic stability of current(peak) (kA)	Rated breaking current of (A)	Closing KA short circuit current of (kA)
12	42	400	12.5	31.5	400	31.5
12	48	630	20	50	630	50

Outline technical parameter
